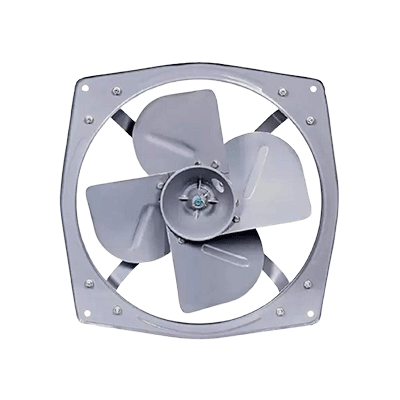

Heavy Duty Exhaust Fan
Heavy Duty Exhaust Fan Manufacturer
Product introduction
When it comes to industrial ventilation and air quality control, having the right equipment is paramount. This is where heavy-duty exhaust fans come into play, ensuring that air pollutants and excess heat are effectively removed from your workspace. EPC Electrical Pvt. Ltd., a leading Heavy Duty Exhaust Fan manufacturer in Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam, has been at the forefront of providing top-notch solutions for various industrial needs, including heavy-duty exhaust fans. In this blog, we’ll delve into the world of Heavy Duty Exhaust Fans, the role we play in industrial settings, and how EPC Electrical Pvt. Ltd. stand out as a reliable manufacturer in India.
The Importance of Heavy-Duty Exhaust Fans
Industrial environments, whether manufacturing plants, warehouses, or commercial kitchens, generate copious amounts of heat, smoke, and pollutants. Proper ventilation is vital to maintain a safe, comfortable, and productive workspace for employees while also ensuring compliance with regulatory standards. This is where Heavy Duty Exhaust Fan come into play. These fans are designed to handle the harshest conditions, efficiently expelling contaminated air and maintaining a healthier atmosphere.Unmatched Performance and Durability
The Industrial Heavy Duty Exhaust Fans from EPC Electrical Pvt. Ltd. are engineered to deliver exceptional performance, durability, and reliability. With a focus on quality craftsmanship and cutting-edge technology, these fans are built to withstand heavy usage and harsh operating conditions prevalent in industrial environments. Equipped with high-performance motors and precision-engineered blades, Unique Industrial Heavy Duty Exhaust Fans ensure efficient airflow and optimal ventilation, contributing to a safer and more comfortable working environment for employees. These fans are designed to effectively remove airborne contaminants, improve air quality, and regulate temperature levels, enhancing overall productivity and well-being in industrial facilities.Customized Solutions for Your Needs
EPC Electrical Pvt. Ltd. takes pride in offering customizable options for Industrial Heavy Duty Exhaust Fans under the unique brand. Whether it’s specific size requirements, specialized mounting configurations, or unique control features, our team works closely with clients to tailor exhaust fan solutions that meet their exact specifications and preferences.Key Features of Heavy Duty Exhaust Fans
- Robust Build: Heavy-duty exhaust fans are built to withstand tough industrial conditions. We are typically constructed with durable materials that can resist corrosion, making them suitable for a variety of industrial applications.
- High Airflow: These fans are engineered to move a substantial volume of air, ensuring the effective removal of heat, fumes, and contaminants from the workspace
- Energy Efficiency: As a responsible manufacturer, we ensure our heavy-duty exhaust fans are not only powerful but also energy-efficient. This helps in reducing operational costs while maintaining a high level of performance.
- Low Noise: Noise pollution is a concern in industrial settings. Our heavy-duty exhaust fans are designed to operate quietly, minimizing disruption to workers.
- Variety of Sizes: These fans come in various sizes to cater to different industrial spaces. Whether you need a compact unit for a small kitchen or a massive fan for a large manufacturing plant, there is an option for you.
Technical Features
MOTOR
EPC Exhaust Fans are provided with capacitor start run induction motors of robust construction, totally enclosed, continuous rated type and specially designed for fan duty. Direction of rotation can be changed simply by interchanging connections of the stator windings. The product range conform to I.S. Specification No. 2312/1967 and are generally provided with class ‘A’ insulation , class ‘E’ insulation, class ‘E’ insulation can be offered to meet special requirements. The fan motors are provided with two ball bearings adequately lubricated.IMPELLER
The impellers are designed for adequate air displacement at low power consumption, effected by blades with deep curvatures and broad surfaces and are fully balanced to ensure uniform load on bearings and long trouble-free service life.Performance Table
| FAN SWEEP | SPEED (R.P.M) | POWER INPUT (WATTS) | CURRENT IN AMPS | SOUND LEVEL | AIR DISPLACEMENT (in free air flow condition) | AIR VOLUMES UNDER STATIC PRESSURE FOR DIAPHRAGM MOUNTING FANS | CATALOGUE NUMBER | ||||||
| 1 Ph. | 3 Ph. | C.F.M m³/h | 0.1” 2.5mm | 0.2” 5.0mm | 0.3” 7.5mm | 0.4” 10.0mm | 0.5” 12.5mm | 1 Ph. | 3Ph. | ||||
| 230v. | 400v. | C.F.M m³/h | C.F.M m³/h | C.F.M m³/h | C.F.M m³/h | C.F.M m³/h | |||||||
| 190MM(7½”) | 1370 | 35 | 0.16 | – | 45 | 270 460 | – | – | – | – | – | P23075/4 | – |
| 230MM(9”) | 1370 | 40 | 0.18 | – | 49 | 440 759 | 270 460 | – | – | – | – | P23009/4 | – |
| 300mm(12”) | 920 | 45 | 0.2 | – | 46 | 750 1270 | – | – | – | – | – | P23012/6 | – |
| 1420* | 82 | 0.38 | 0.20 | FQ | 1120 1900 | 900 1530 | 700 1190 | 500 850 | – | – | P23012/4 | P44012/4 | |
| 380mm (15”) | 920 | 78 | 0.35 | 0.20 | Q | 1450 2460 | 1090 1850 | 700 1190 | – | – | – | P23015/6 | P44015/6 |
| 1420* | 150 | 0.70 | 0.40 | NI | 2350 4000 | 1980 3350 | 1780 3020 | 1500 2550 | 1300 2210 | 1020 1730 | P23015/4 | P44015/4 | |
| 450mm(18”) | 920 | 132 | 0.60 | 0.35 | FQ | 2550 4340 | 2030 3450 | 1600 2720 | 1100 1870 | – | – | P23018/6 | P44018/6 |
| 1420* | 370 | 1.65 | 0.70 | FN | 4000 6800 | 3500 5950 | 3280 5600 | 3000 5100 | 2800 4750 | 2500 4250 | P23018/4 | P44018/4 | |
| 600mm (24”) | 720 | 240 | 1.10 | 0.50 | FQ | 4650 7900 | 3800 6450 | 3100 5260 | 2300 3920 | – | – | P23024/8 | P44024/8 |
| 920* | 500 | 2.40 | 0.90 | NI | 6150 10450 | 5300 9000 | 4900 8350 | 4400 7500 | 3800 6450 | 3200 5450 | P23024/6 | P44024/6 | |
| 900mm(36”) | 570* | 740 | – | 1.50 | NI | 13000 22100 | 10800 18300 | 9800 16600 | 8500 14400 | 7000 11900 | 5000 8500 | – | P44036/10 |
| 720* | 1200 | – | 2.80 | FN | 16500 6800 | 14000 28000 | 13100 22300 | 12200 20700 | 11100 18900 | 10000 17000 | – | P44036/8 | |
The Wide Application Range
EPC Electrical Pvt. Ltd. as a Heavy-duty exhaust fans manufacturer finds applications in a wide array of industrial sectors, including but not limited to:- Manufacturing Plants:Ensuring the removal of heat and fumes in manufacturing units is essential for maintaining worker safety and product quality.
- Commercial Kitchens:Heavy-duty exhaust fans are a must to eliminate smoke, odors, and excess heat in busy restaurant and catering kitchens.
- Chemical Processing Facilities:In industries dealing with volatile chemicals, having flame-proof exhaust fans is essential to prevent accidents.
- Warehouses:Proper ventilation in warehouses ensures that the air remains fresh, and humidity and heat do not damage stored goods.
- Agricultural and Livestock Facilities:These fans play a vital role in maintaining healthy conditions in barns, poultry farms, and greenhouses.
- Automotive Garages:Effective ventilation is crucial to dissipate harmful exhaust gases and maintain a safe working environment.
- Data Centers:Cooling is a significant concern in data centers. Heavy-duty exhaust fans help regulate the temperature and ensure smooth operations.
