Sturdily built, sleek and elegant Typhoon Air Circulators are specially designed for large air delivery, noise-free smoothrunning and dependable performance. They are ideal for places where movement of large volume of air is necessary, such as cinema halls auditorium, hotels, restaurants, lobbies, workshops, etc. Typhoon Air Circulators are available in several models – 2 Winged, 4 winged, Pedestal and bracket types to choose from. They come in pleasing two-tone colour combination and can be made available in any colour combination according to customer’s choice. The product range is tested to IS Specification No. 2997-1964.
- MOTOR: The power packed totally enclosed capacitor type motor is specially designed for optimum performance. Motor are made of die cast aluminium components resulting in lighter weight, excellent heat dissipation properties and cooler running and are provided with double ball bearings for extra durability.
- IMPELLER: The broad winged integrally cast aluminium impeller sets a large volume of air into far-reaching movement and is effective upto a distance of little over 15 meters (50 ft.).
SPECIAL FEATURES

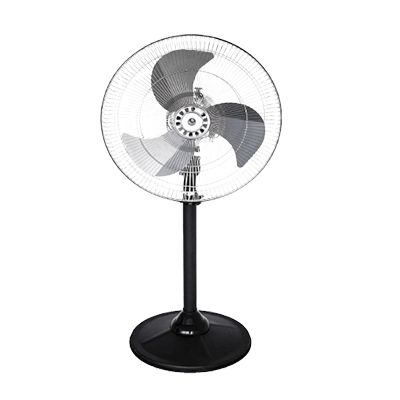

- The height of the pedestal type can be raised by 250 mm with telescopic arrangement in the vertical column.
- The angle of air discharge can be adjusted vertically, upward or downward by 15°.
- Stepless Electronics Regulators can be made available at extra cost.
- The sturdy pedestal base fitted with rubber pads ensures more stability.

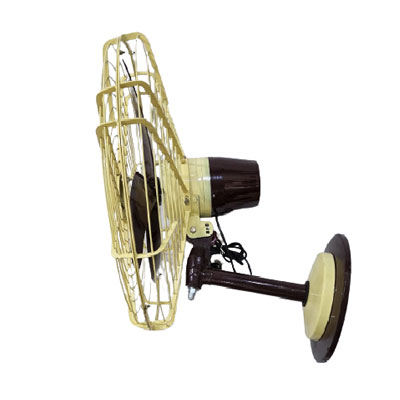

- Grouting arrangement of the bracket in bracket type is totally enclosed.
- Typhoon Air Circulators are available in 230 volts – single phase or 400 volts-three phase 50 cycles A.C. supply.
Performance Table for Pedestal and Bracket Type Fans
| Fan Sweep |
No. of Blades |
Speed (R.P.M) |
Power Input (watts) |
Current in Amps |
Air Delivery C.F.M. |
Pack
Velocity
m³/min |
Tested at a distance
m. |
| 1-ph. 3-Ph.
(230V) (400V) |
m³/min |
| 450 mm (18*) |
4 |
1420 |
85 |
0.40 |
0.17 |
|
260 |
2.7 |
| 750 mm (30*) |
4 |
1420 |
225 |
1.05 |
0.42 |
|
290 |
4.5 |
